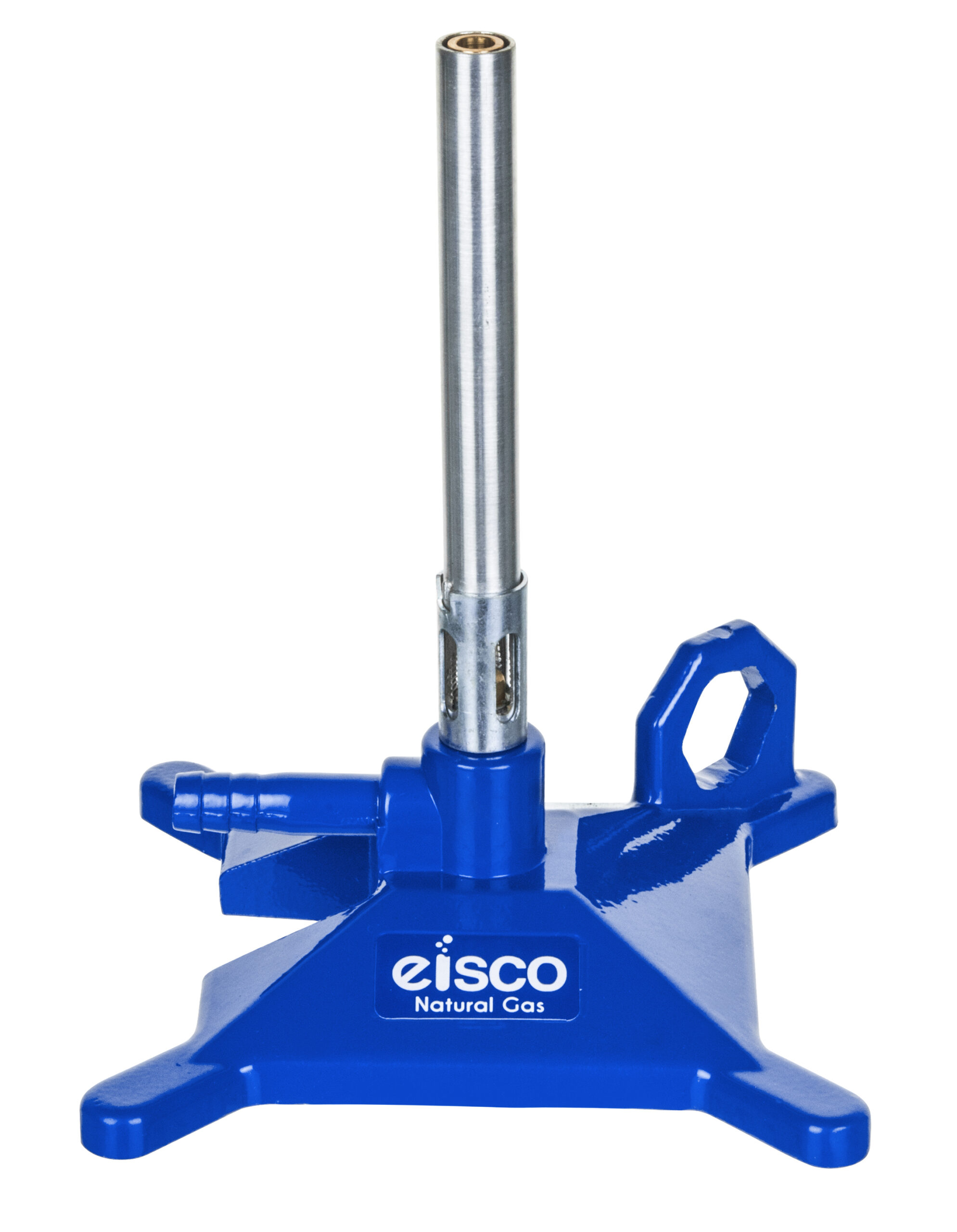

This basic Bunsen burner is used for safe continuous stream of flammable gas used for heating, sterilization and combustion. Features one adjustment, which is an air flow adjustment sleeve. Burner is designed to have the flame controlled via the valve at the gas output, and not at the burner. This is a simple and easy to use burner jetted for natural gas. Natural Gas Burners have a BTU range usually 800-1200. Maximum Temperature is approximately 1500° C (2732° F).
This burner is equipped with casted ribbed fuel input tube with an 8mm outside diameter – Recommended neoprene tube (not included) to connect burner to fuel source is Eisco Labs Neoprene Hose – available in 2 ft or 3 ft length options (CH0100A or CH0100B). Each end of the tubes has a flexible end that can fit a variable diameter of 0.28″ to 0.42″ (8-10mm) to accept a variety sizes on different burners.
Burner measures 5.75″ tall, and base measures 4.25″ wide and long.
Eisco produces high-quality, trusted science education products and solutions to help students explore and discover science through hands-on experiences.
They produce more than 8,000 unique products for the science education and scientific research markets. Their core product lines include: Biology Models, Laboratory Glassware and Plasticware, Lab Equipment and Supplies, Physics Supplies and Apparatus, Rock and Mineral Specimens
