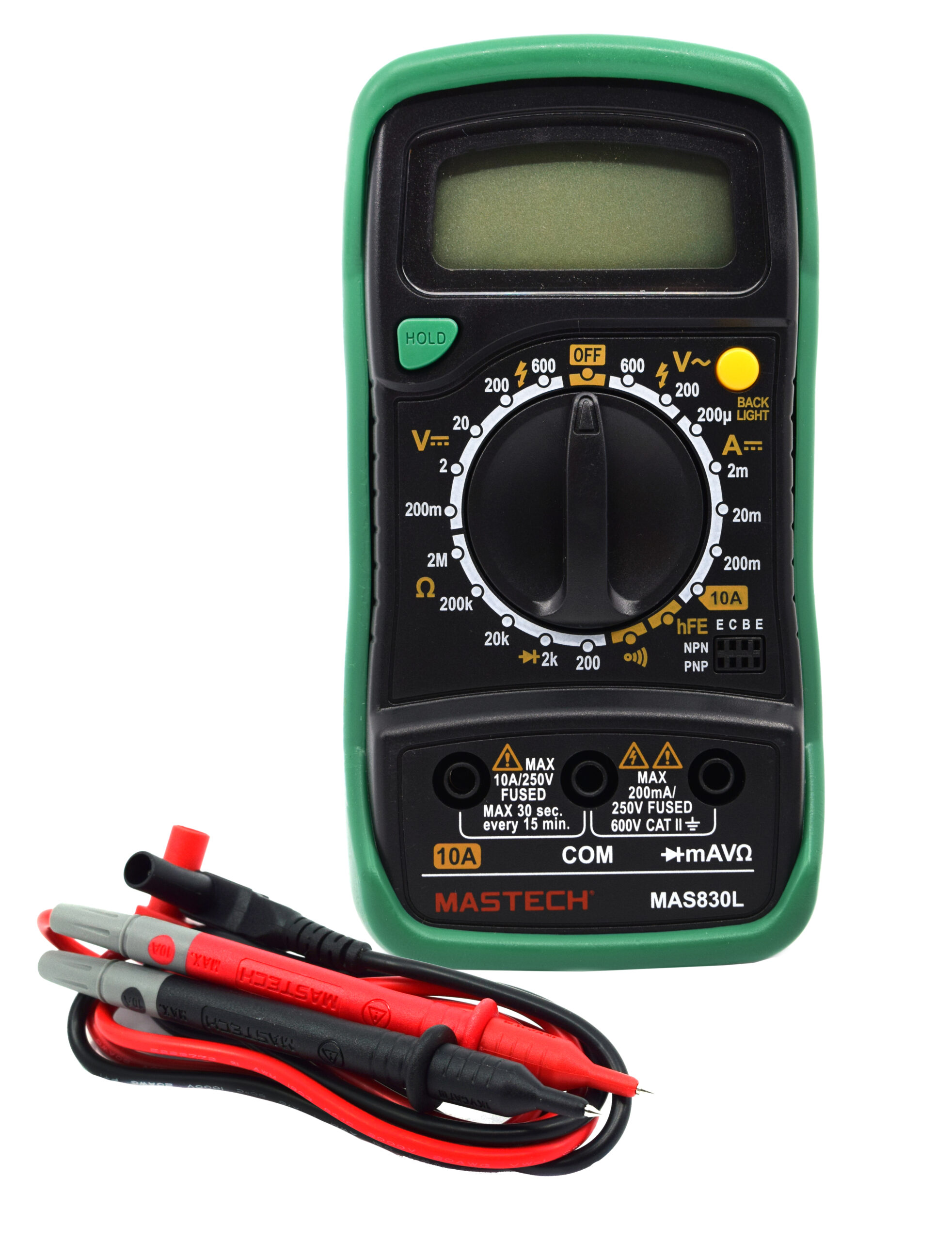

Handheld digital Multimeter with LCD display and drop resistant case. Includes battery, 2 testing leads and instructions manual.
Stable and reliable. Features a 15mm LCD display for clear reading. The circuit design takes LSI double integral A/D converter as its core under the protection of an overload protection circuit, making it a superior and handy instrument. Can be used to measure DC and AC voltage, DC current, resistance, transistors, diodes and for in-circuit continuity testing.
Unit measures 5.4″ tall, 2.7″ wide and 1.2″ long.
- D.C. Voltage 200 mV – 600 V ±(0.5% ±2 digit)
- A.C Voltage 200 V – 600 V ±(1.2% ±10 digit)
- D.C. Current 200 μA – 10 A ±(1% ±2 digit)
- Resistance 200 Ohms – 2 MOhms ±(0.8% ±2 digit)
- Transistor Test NPN & PNP Range 0 – 1000
- Test Voltage VCE – 3V
- Display Size 15 mm High LCD , 3½ digit, 7 Segments
- Diode Test: Yes
- Continuity Test: Yes
- Fuse Protection F 200mA / 250 Volts
