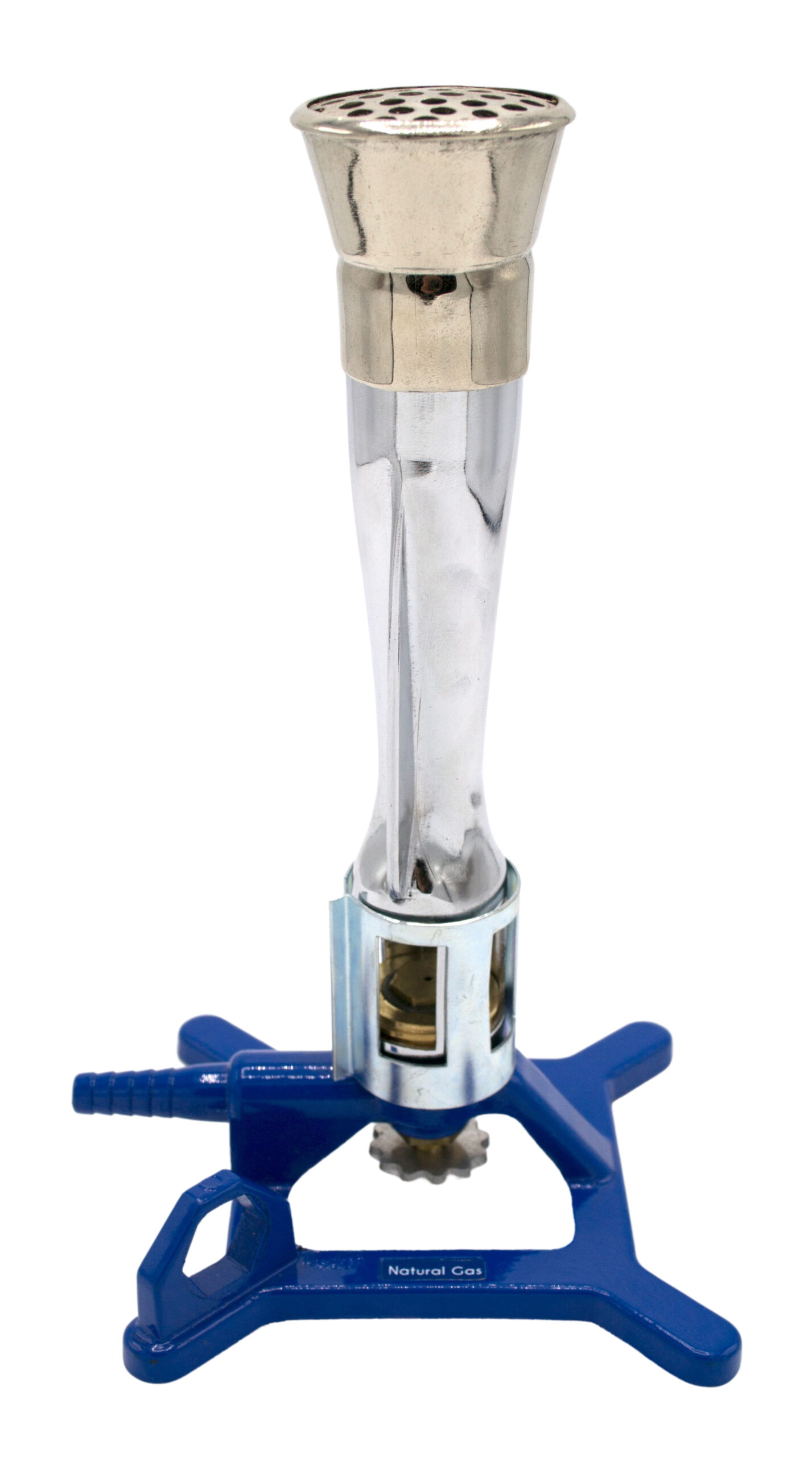

This premium Meker Bunsen burner is designed for finely controlled air and gas mixture. Produces a shorter, much hotter flame than traditional burners. Provides a safe, continuous stream of flammable gas used for heating, sterilization and combustion. This burner is equipped with a brass flame stabilizer tip and two adjustable features – a threaded air flow adjustment to control the oxygen that is drawn into the tube, and a gas adjustment underneath the burner. Expanded Meker type top with Monel stabilizing and heat intensifying grid that measures approximately 1.75″ in diameter. Jetted for natural gas. Natural Gas Meker burners have a BTU range usually 600 -1100. Maximum Temperature is approximately 1780°C (3236°F).
This burner is equipped with casted ribbed fuel input tube with an 8mm outside diameter – Recommended neoprene tube (not included) to connect burner to fuel source is Eisco Labs Neoprene Hose – available in 2 ft or 3 ft length options (CH0100A or CH0100B). Each end of the tubes has a flexible end that can fit a variable diameter of 0.28″ to 0.42″ (8-10mm) to accept a variety sizes on different burners.
Burner measures 8.5″ tall, and base measures 4.5″ wide and long.
Eisco produces high-quality, trusted science education products and solutions to help students explore and discover science through hands-on experiences.
They produce more than 8,000 unique products for the science education and scientific research markets. Their core product lines include: Biology Models, Laboratory Glassware and Plasticware, Lab Equipment and Supplies, Physics Supplies and Apparatus, Rock and Mineral Specimens
